Clear Span Tent
Our clear span tent systems are some of the most versatile in the industry. We provide distinct solutions ranging from small 4m x 4m options up to larger 50 x 100m tent systems. Our diverse selection ensures that whatever the size or intended application, we have the ideal clear span solution. Additionally, our highly experienced engineers also provide bespoke alternatives, allowing us to customize a solution that meets any technical requirements. We believe that a successful event is one that comes complete with the perfect tent structure, and our clear span tents are designed to ensure this every time. Our collection of clear span structures are backed by years of experience in the tent industry and come with unwavering attention to detail, leading to the best quality and safety.
Clear Span Tent Designs
High-peak Gazebo
A-roof Small Party Tent
A-roof Large Event Tent
Arch Tent
Polygonal Tent
Capsule Structure
Thermo Flat Roof Tent
Mixed Party Tent

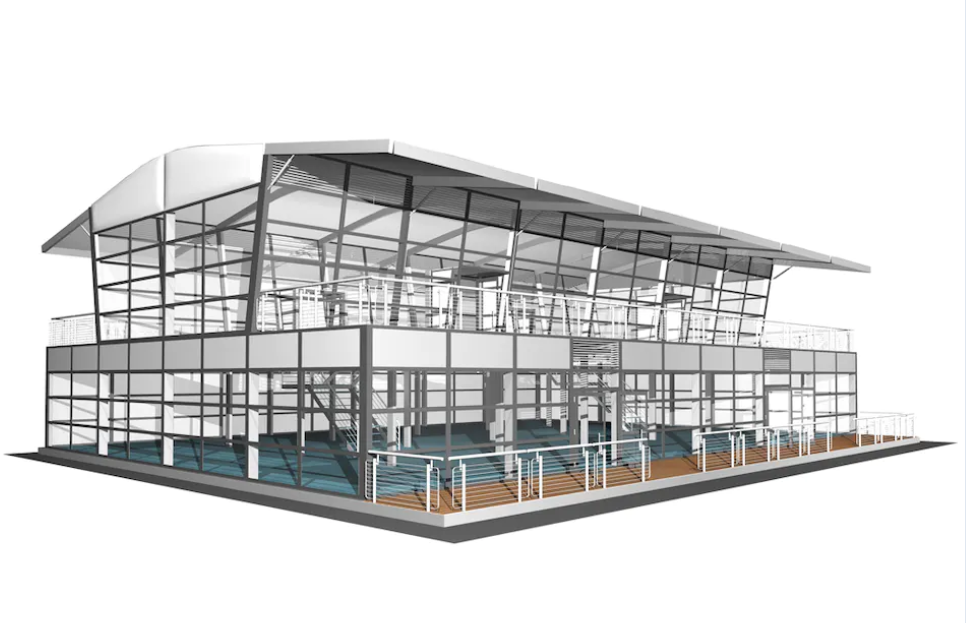

Double Decker Tent
Multi-side Tent

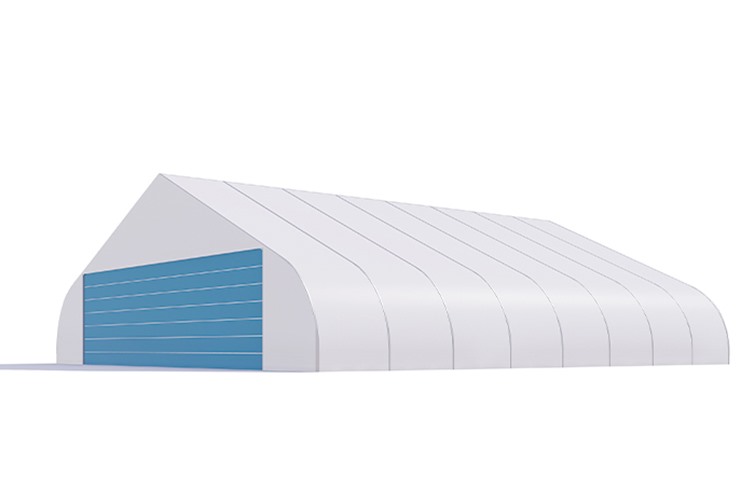

Industrial Tent
TFS Tent
Specifications
| Tent Type | Span width | Eave height | Ridge height | Bay distance |
| Pagoda | 3.00 – 10.00m | 2.50 – 2.60m | 3.00 – 10.00m | |
| A-roof Event Tent | 3.00 – 50.00m | 4.00m | 6.00m | 6.40 – 16.25m | 5.00m |
| Arch Tent | 10.00 – 50.00m | 4.00m | 5.25 – 11.50m | 5.00m |
| Polygonal Tent | 10.00 – 50.00m | 4.00m | 6.00m | 5.60 – 16.25m | 5.00m |
| Capsule Structure | 3.00 + 9.00 + 3.00m | 5.00 + 15.00 + 5.00m | 4.00m | 7.50m | 9.00m | 5.00m |
| Cube Tent | 10.00 – 25.00m | 4.00m | 6.00m | 4.67 – 9.10m | 5.00m |
| Mixed Party Tent | 10.00 – 30.00m | 8.00m | 8.67 – 12.30m | 5.00m |
| Double Decker Tent | 10.00 – 30.00m | 8.00m | 8.67 – 12.30m | 5.00m |
| Multi-side Tent | 16.00 – 40.00m | 4.00m | 9.45 – 13.92m | / |
| Industrial Tent | 30.00 – 50.00m | 4.00m | 6.00m | 9.00 – 16.25m | 5.00m |
| TFS Tent | 15.00 – 35.00m | / | 8.08 – 12.85mm | 5.00m |
| A-roof Tent | Span width | Eave height | Minimum Length | Maximum Length | Bay distance | Main Profile |
| FS Series | 3-9m | 2.6m | 3m | No Limit | 3m |
84 x 48 x 3mm
|
| FD Series | 8-10m | 2.6m | 3m | No Limit | 3m |
100 x 48 x 3mm
|
| ES Series | 8m / 10m / 12m | 3.0m | 5m | No Limit | 5m |
122 x 68 x 3mm
|
| ED Series | 10m / 12m / 15m | 4.0m | 15m | No Limit | 5m |
166 x 88 x 3mm
|
| EC Series | 15m / 20m / 25m | 4.0m | 15m | No Limit | 5m |
203 x 112 x 4mm
|
FS Series
Frame Profile – FS Series 84
The Function Standard (FS) Series features our professional 3m bay event marquees. We also have FS 2 Series clear roof marquees for sale that come with widths of 6m and 8m. This marquee series is available with a complete range of accessories, including sidewalls with clear windows, roof lining glass wall and door systems, and ABS solid walling and flooring systems.
Marquee Size
Clear-Span Width:
3m / 4m / 5m / 6m / 8m
Bay Distance: 3m
Minimum Tent Length: 3m
Maxmimum Tent Length: No Limit
Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
Frame Specifications
Eave Height: 2.6m
Roof Pitch: 20º
Main Profile: 84 x 48 x 3mm (2-channel)
Max Allowed Windspeed: 80km/hr 0.3kn/m2
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6(13HW)
FD Series
The Function Deluxe (FD) Series mirrors the traditional functionality of the FS and FS 2 with multiple key enhancements, including a sturdy 100mm X 48mm X 3mm framework, a roof tension system, and a new mounting for the sidewalls that improve weatherproofing. The larger frame profile allows for a 10m clear span with 3m wide bays. A robust design in an attractive, modern package!
Marquee Size
Clear-Span Width:
8m / 9m / 10m
Bay Distance: 3m
Minimum Tent Length: 3m
Maximum Tent Length: No Limit
Frame Specifications
Eave Height: 2.6m
Roof Pitch: 20º
Roof Fixing: Bar Tensioning

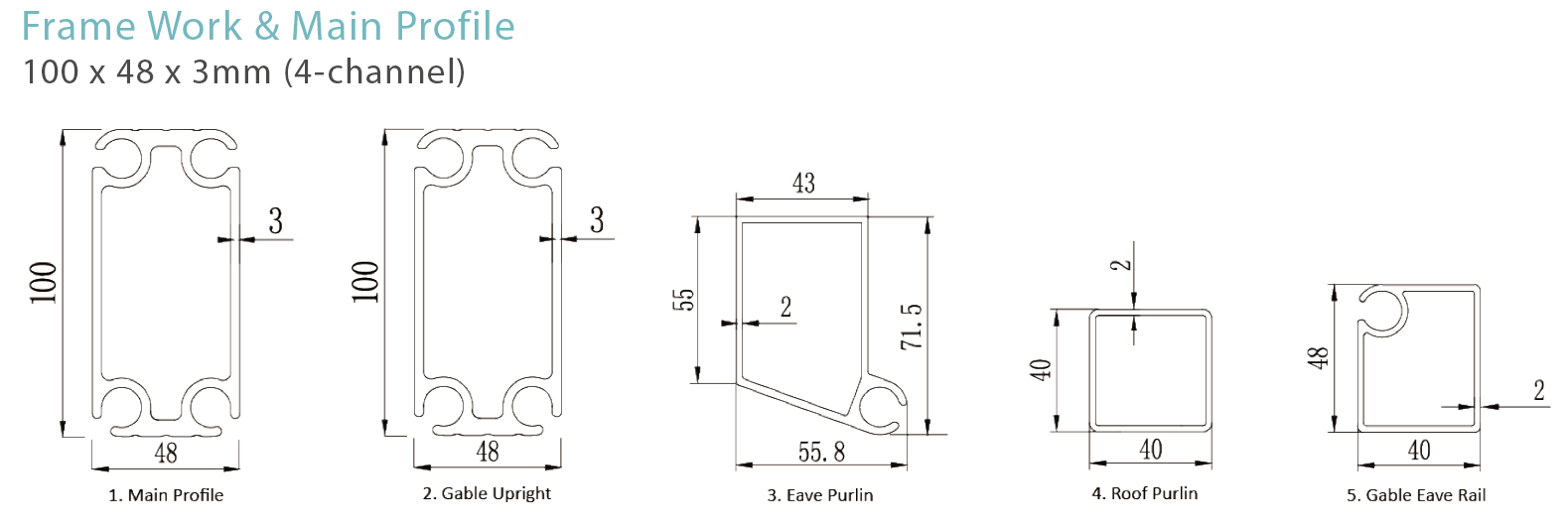

Main Profile: 100 x 48 x 3mm (4-channel)
Max Allowed Windspeed: 80km/hr 0.3kn/m2
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)
Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
ES Series
Frame Profile – ES Series 122
The Event Standard (ES) Series features our professional 5m bay event marquees. We also have ES 2 clear roof marquees with widths of 8m, 10m and 12m. Just like the FS Series, these event marquees are also available with a complete range of accessories, including sidewalls with clear windows, roof lining glass wall and door systems, and ABS solid walling and flooring systems.
Marquee Size
Clear-Span Width:
8m / 10m / 12m
Bay Distance: 5m
Minimum Tent Length: 5m
Maximum Tent Length: No Limit
Frame Specifications
Eave Height: 3m
Roof Pitch: 20º
Roof Fixing: Bar Tensioning
Main Profile:
122 x 68 x 3mm (4-channel)
Max Allowed Windspeed:
80km/hr 0.3kn/m2
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)
Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
ED Series
Frame Profile – ED Series 166
The Event Deluxe (ED) Series features large-size, robust marquees available in multiple width options, including 10m, 12m and 15m with a minimum length of 15m. We also have ED 2 clear roof marquees for sale that come with a massive 166mm x 88mm x 3mm profile frame. The ED Series is an ideal choice for use at outdoor exhibitions, business promotions, sports events, warehouses, workshops and emergency relief work.
Marquee Size
Clear-Span Width:
10m / 12m / 15m
Bay Distance: 5m
Minimum Tent Length: 15m
Maximum Tent Length: No Limit
Frame Specifications
Eave Height: 4m
Roof Pitch: 18°
Bay Distance: 5m
Main Profile:
166 x 88 x 3mm (4-channel)
Max Allowed Windspeed: 80km/hr
Eave Connection: Hot galvanizd steel
Eave Connection: Hot-dip galvanized steel insert
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)
Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
EC Series

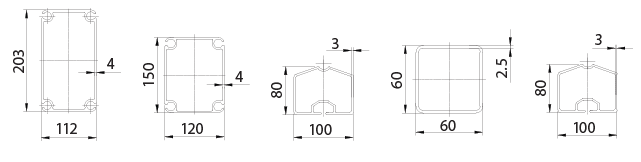

Frame Profile – EC Series 203
The Event Standard (ES) Series features our professional 5m bay event marquees. We also have ES 2 clear roof marquees with widths of 8m, 10m and 12m. Just like the FS Series, these event marquees are also available with a complete range of accessories, including sidewalls with clear windows, roof lining glass wall and door systems, and ABS solid walling and flooring systems.
Marquee Size
Clear-Span Width:
Clear-Span Width:
15m / 20m / 25m
Bay Distance: 5m
Minimum Tent Length: 15m
Maxnimum Tent Length: No Limit
Frame Specifications
Eave Height: 4m
Ridge Height: 5.58m / 7.44m / 7.96m
Roof Pitch: 18º
Main Profile: 203 x 112 x 4mm (4-channel)
Max Allowed Windspeed: 80km/hr 0.5kn/m2
Eave Connection: Hot-dip galvanized twin steel plate
Framework Material: Hard pressed extruded aluminium 6061/T6 (13HW)
Manufacturer’s Warranty
10 Year Frame
5 Year White / Coloured PVC
2 Year Printed PVC / Clear PVC
